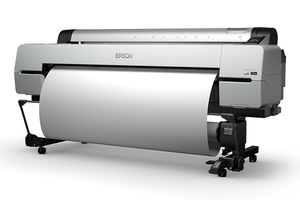

The all-new 44” Epson SureColor P10000 and 64” Epson SureColor P20000 are the successors to one of the most widely used fine art printers ever developed – the Epson Stylus® Pro 11880.
Designed for high-production photographic, fine art and indoor display graphics printing, we’ve incorporated newly-developed imaging technologies – including an all-new high-performance 2.6” wide Epson PrecisionCore® MicroTFP® print head. Along with an all-new Epson UltraChrome PRO nine-color pigmented ink set – including four levels of gray – the all-new SureColor P10000 and SureColor P20000 are the ultimate production tools for the demanding requirements of high-production color and black-and-white fine art printmaking.
Including advanced media handling options from cut sheet to roll, from plain papers to photographic, fine art, and even 1.5 mm thick poster boards, the new Epson SureColor P10000 and SureColor P20000 redefine the state of the art in wide format, high-production photographic imaging applications.
UltraChrome® Pro Inks
Next Generation Pigment Ink Technology — Introducing all new pigments for outstanding color performance and Improved Resin Encapsulation Technology for superior gloss uniformity
Improved Black Density — Photo Black pigment 1.5 times denser than the previous generation ink set, along with significant improvement to overall contrast ratio and optical clarity
Significant Print Permanence Improvements — Featuring completely reformulated pigment technology for improved print permanence, and up to twice the overall print permanence versus our previous generation ink set1
Extreme Color Balance — 4 levels of black, featuring an all-new dark gray for rendering superb gray balance through the entire tonal range of B&W and color prints at any production speed
PrecisionCore® microTFP Printhead
Design for Production — 2.6 inch tall printhead with 800 nozzles per color, 8000 high performance nozzles in all
Robust Engineering — Single head configuration designed for maximum quality and reliability in demanding high-speed environments
Epson Precision Dot — Delivers best-in-class continuous tone image quality at production level print speeds
Printer Applications2
Ultra-Fast Drafts — Print at up to 1,311 sq ft/hour (1 pass) on plain paper when speed is the critical factor
High-Speed Poster Printing — For high-speed production on various coated media types, the 411 sq ft/hour (4 pass) and 273 sq ft/hr (6 pass) modes provide highly sellable output
Indoor Display Graphics — The 273 sq ft/hour mode (6 pass) on semigloss or glossy media provides eye-catching photographic quality even up close
On-demand Photo & Fine Art — Start with 209 sq ft/hour (8 pass) or move up in quality to 104 sq ft/hour (16 pass) for best-in class fine art production printing. Perfect for use with Epson Signature Worthy Canvas, Fine Art and Photo media
Exhibition Quality Prints — Combine maximum quality 68 sq ft/hour (24 pass) with the highest quality Epson Legacy photo media for prints worthy of the world’s most exclusive galleries and exhibitions
Print:
Printing Technology:
Advanced PrecisionCore MicroTFP Print Head
10-channel, piezo inkjet print head
Minimum Ink Droplet Size:
Enhanced Variable Droplet Technology as small as 3.5 picoliters
Maximum Print Resolution:
2400 x 1200 dpi; 1200 x 1200 dpi; 1200 x 600 dpi; 600 x 600 dpi; 600 x 300 dpi
Print Speed:
16″ x 20″ prints from 1:47 to 3:17 Production is 2:092
20″ x 30″ prints from 2:55 to 5:33 Production is 3:402
40″ x 60″ prints from 8:33 to 16:30 Production is 10:522
Nozzle Configuration:
Color and Monochrome; 800 nozzles x 10 channels
Ink:
Ink Type:
Epson UltraChrome PRO pigment inks
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink.
Ink Palette:
C, LC, VM, VLM, Y, LGY, GY, DGY, PK, MK
Ink Configuration:
10-ink, 9-color
Replacement Ink:
Photo Black T800100
Cyan T800200
Vivid Magenta T800300
Yellow T800400
Light Cyan T800500
Vivid Light Magenta T800600
Dark Gray T800700
Matte Black T800800
Gray T800900
Light Gray T800000
Fade Resistance / Print Longevity:
UltraChrome PRO, our next-generation pigment ink technology, is independently rated by Wilhelm Research for up to 200 years for color prints and up to 400 years for black-and-white prints1
General:
Operating Systems:
Apple macOS® 10.13.x-10.12.x, OS X®: 10.11x-10.7×6
Microsoft® Windows®: 10, 8.1, 7 (32-bit, 64-bit)6
Temperature:
Operating: 50° to 95°F (10° to 35°C)
Operating Recommended: 65° to 75°F (18° to 24°C)
Storage: -4° to 104°F (-20° to 40°C)
Humidity:
Operating: 20 to 80% (no condensation)
Operating Recommended: 40 to 60% (no condensation)
Storage: 5 to 85% (no condensation)
Sound Level:
Sound Pressure Level: Less than 51.1 dB(A)
Sound Power Level: approx. 65.3 dB(A)
Dimensions:
Basket Open: 95.1″ x 38.4″ x 45.1″ (2415 x 980 x 1168 mm)
Weight:
377 lbs (171 kg)
Safety Approvals:
Safety Standards: UL605950-01, CAN/CSA C22.2 No. 60950-1 EMC FCC part 15 subpart B class A, CAN/CSA-CEI/IEC CISPR22 class A, AS/NZS CISPR 22 class A
Country of Origin:
China
Warranty:
Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.
Optional Epson SureColor P-Series Extended service plans available for purchase.
Ink Supply System:
Ink Supply Fill Volume:
Initial cartridge fill volume: 110 ml x 10 total colors (used for initial fill at setup)
Cartridge fill volume: 700 ml each x 10 colors total
Ink Shelf Life:
2 years from printed production date or 6 months after open
Printable Area and Accuracy:
Maximum Paper Width:
64″
Minimum Cut-sheet Size:
8.5″ x 11″
Minimum recommended cut-sheet: 13″ x 19″
Minimum Paper Width:
10″
Maximum Printable Width:
64” in BorderFree print mode
63.75” in standard print mode
Line Accuracy:
+/- 0.2% of specified length
+/- .26mm minimum
Maximum Printable Length:
Cut-sheet: 80″
Roll: 590.55″
As allowed by the Epson MAC and PC printer driver. Application, version of application and Operating System version may limit maximum length.
Sheet Media Handling:
Sheet Loading:
Top-loading if less than .5mm thick
Thickness:
0.8mm to 1.5mm
Single Sheet, Top-loading:
Up to 44″ wide
BorderFree Print Widths:
Left and right borderless “bleed” printing on sheet and roll for the following media widths:
10″, 11.8″, 12.95″, 16″, 17″, 20″, 23″, 24″, 28.86″, 29″, 33.11″, 36″, 40.55”, 44”, 50” 54” and 60”
Left/Right Margins:
3mm each side; 6mm or 0.24″ total
Top/Bottom Margins:
3mm / 15mm (0.12″/0.59″)
15mm / 15mm (with centering)
Printer Details:
Printer Language:
Epson Professional Photographic Drivers standard; optional internal Adobe® Postscript® 3™ print server1
Interfaces:
USB 2.0 (1 port)
1000Base-T Ethernet (1 port)
Power:
Rated Voltage:
AC 110 – 240 V
Power Consumption:
Printing: approx. 95 W
Sleep Mode: approx. 2.8 W (1000 BaseT Ethernet in Standby Mode)
Power Off: less than 0.5 W ENERGY STAR® qualified
Rated Current:
5 A
